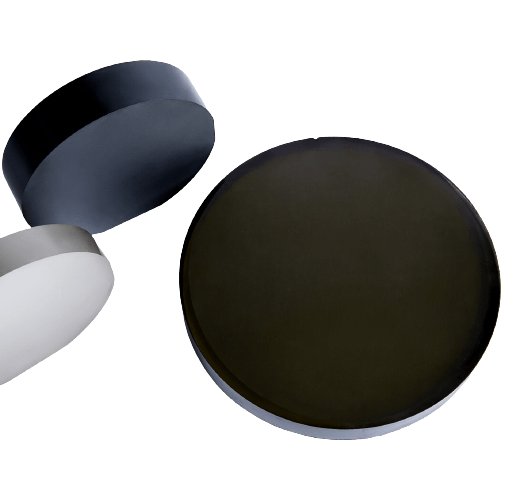

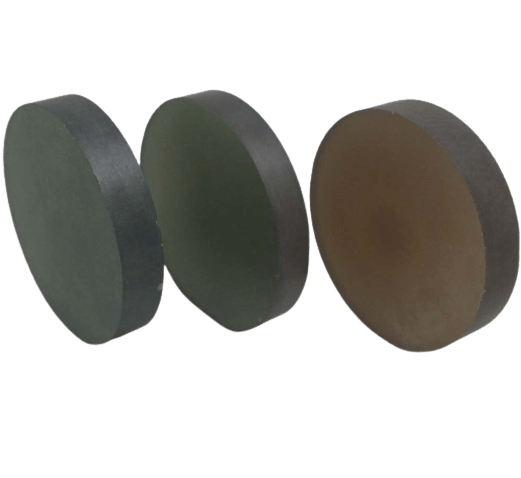

Silicon Carbide SiC Ingot 8inch N Type Production / Dummy Grade
Silicon Carbide SiC Ingot 8inch N Type Production / Dummy Grade

SOKA TECHNOLOGY

Silicon Carbide SiC Ingot 8inch N Type Production / Dummy Grade

판매 가격$3,495.00 USD
Number Of Item:1mm
Grade:Procudtion Grade
수량:
♦️High-quality SiC ingot for Research and Experiment.
♦️Provide small quantities, special specifications products, and customized services.
♦️Global shipping, secure payment, large inventory.
♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.
SiC Ingot Specification:
  • Grade: Production
  • Size: 8inch;
  • Diameter: 200.25 mm ±0.25;
  • Thickness: >10mm;
  • Surface Orientation: 4°toward<11-20>±0.2°;
  • Notch orientation:<1-100>±5°;
  • Notch Depth:1-1.5mm
  • Resistivity: 0.015~0.028;
  • Micropipe: ≤2;
  • BPD: ≤2000;
  • TSD: ≤5000;
  • Polytype areas: None;
  • Edge indents:≤3,≤1mm width and depth;
  • Edge Cracks:≤3,≤1mm/ea;
  • Packing: Wafer case;
  • Dummy Grade
  • Size: 8inch;
  • Diameter: 200.25 mm ±0.25;
  • Thickness: >10mm;
  • Surface Orientation: 4°toward<11-20>±0.2°;
  • Notch orientation: <1-100>±5°;
  • Notch Depth: 1-1.5mm
  • Resistivity: 0.015~0.028;
  • Micropipe: ≤50;
  • BPD: None;
  • TSD;None;
  • Polytype areas:≤30%;
  • Edge indents: ≤5,≤2mm width and depth;
  • Edge Cracks:≤5,≤3mm/ea;
  • Packing: Wafer case;
