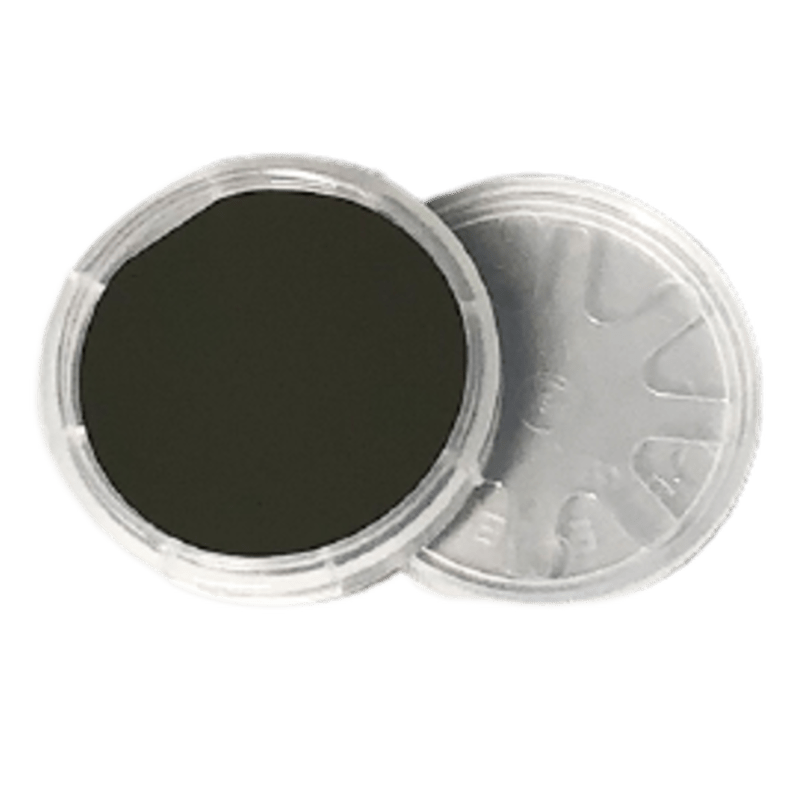

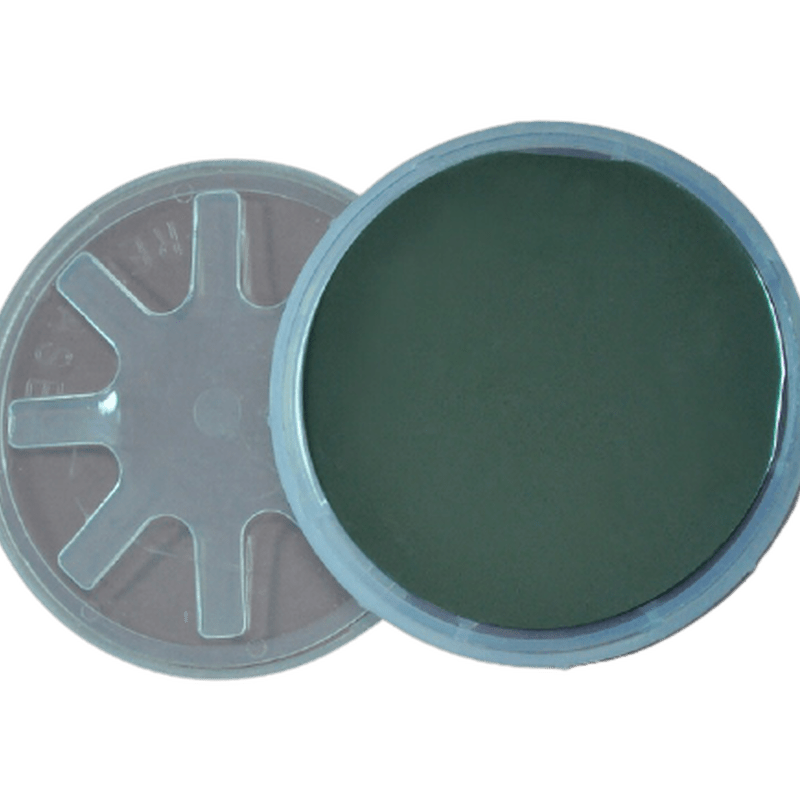

InP Substrate 2inch Semi-insulating 111B Indium Phosphide Semiconductor Wafer

Sale price$4,500.00 USD
Grade:Prime
Number Of Items:20 Items
Quantity:
♦️High-quality InP wafer for Research and Experiment.
♦️Provide small quantities, special specifications products, and customized services
♦️Global shipping, secure payment, large inventory.
♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.
Indium Phosphide (InP) Specification:
  • Size: 2inch ;
  • Diameter: 50.05mm±0.2 ;
  • Dopant: S-C-N/S ;
  • Thickness: 350um±25 ;
  • Flat Option: EJ;
  • Primary Orientation: [0-1-1]±0.02° ;
  • Primary Flat Length: 16mm±2 ;
  • Second Flat Orientation: [0-11] ;
  • Second Flat Length: 7mm±1 ;
  • Carrier Concentration: 2E18~8E18cm-3;
  • Resistivity: 0.6E-3~2.5E-3Ω;
  • Mobility: 1000~2000cm2/V·Sec;
  • EPD: Ave<5000cm-2;
  • Edge Rounding:0.25mmR(Conform to SEMI Standards);?
  • TTV/TIR:≤10um ;
  • BOW:≤10um ;
  • Warp:≤15um ;
  • Front side: Polished ;
  • Backside: Etched;
  • Epi-Ready: Yes ;
  • Packing: Wafer case ;
